DC Isolator Safety Upgrades Perth WA

Yes. DC isolators are required by Australian Standards on all grid-connected solar systems. The current standard, AS/NZS 5033:2021, sets the compliance requirements for PV array installation. However, the problem with older systems is not the absence of isolators, but the quality of those originally installed. DC isolators fitted before approximately 2009 used specifications that proved inadequate for Australian heat and UV conditions. These older units have a high failure rate and are considered a significant fire risk. Energy Safety WA has issued safety bulletins on this issue. Any Perth home with solar installed before 2013 should have its DC isolators professionally assessed.

The first generation of DC isolators used in Australian solar installations had plastic housings and internal components that were not rated for sustained exposure to Australian UV levels, heat, and the repetitive thermal cycling (heating and cooling) that rooftop conditions create. Over time, the housing degrades, contacts loosen, and internal arcing can occur. Perth's extreme summer roof temperatures, which can exceed 70°C, accelerate this deterioration significantly. The current standard, AS/NZS 5033:2021, requires compliant DC isolators. Older units installed before this standard was in place are at highest risk.

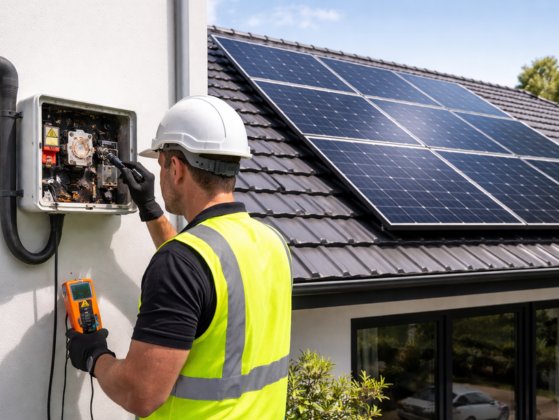

Visual signs include discolouration (yellowing or browning), warping, melting, or visible arcing marks on the isolator housing. However, dangerous deterioration often cannot be seen from the outside, making a professional assessment essential. If your system was installed before 2013, we strongly recommend booking an inspection regardless of visible condition. Our Perth electricians identify isolator make, model, age, and compliance status during assessment against current AS/NZS 5033:2021 requirements.

Yes. If a fire is caused by a known-faulty DC isolator and your insurer determines you were aware of the risk or the system was non-compliant, your claim may be affected. Perth insurers are increasingly aware of DC isolator risks and some policies now require compliant solar components. Replacing non-compliant isolators protects both your home and your insurance position.

A standard residential DC isolator replacement in Perth typically takes 2–4 hours depending on system size and access. The process includes safe de-energisation of the solar system, removal of the faulty isolator, installation of a compliant replacement, electrical testing, and documentation. We issue compliance certificates on completion for your insurance and property records.

Yes. Perth's coastal suburbs, including Scarborough, Cottesloe, Hillarys, and Fremantle, experience salt-laden air that accelerates corrosion inside DC isolator housings, degrading internal contacts and increasing arcing risk. We see faster DC isolator deterioration at coastal Perth properties compared to inland suburbs, making early assessment and replacement particularly important for coastal homeowners.
